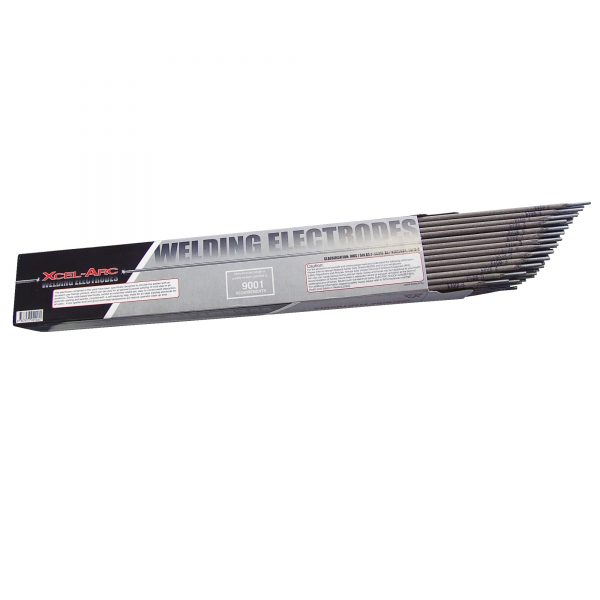

Electrode General Purpose 4mm 5kg Xcel-Arc

A true general-purpose welding electrode for both the beginner and experienced welders.

The special coating makes this electrode unique in that it is almost impossible to “stick“ the electrode to the work.

A strong smooth weld with very little spatter and self releasing slag is produced.

Weld bead appearance is excellent and the molten pool is controlled with ease in all positions.

The special coating allows easy welding of galvanised steels, dirty, rusty and scaly steels.

Standards, Classifications

AWS SFA A5.1 E6013  ●  AS/NZ1553.1:E4112-0

Typical Mechanical Properties of Weld metal

Yield Stress: 460Nmm2
Tensile Strength: 490N/mm2
Elongation: 25%
Impact Values: 65J@0°C

Typical Weld metal Analysis

C: 0.08%, Si: 0.3%, Mn: 0.5%, P: 0.014%, S: 0.016%
