Buy online Xcel-Arc Razor Tig 200 ACDC PFC 10amp Plug Digital Compact Kit NEW MODEL

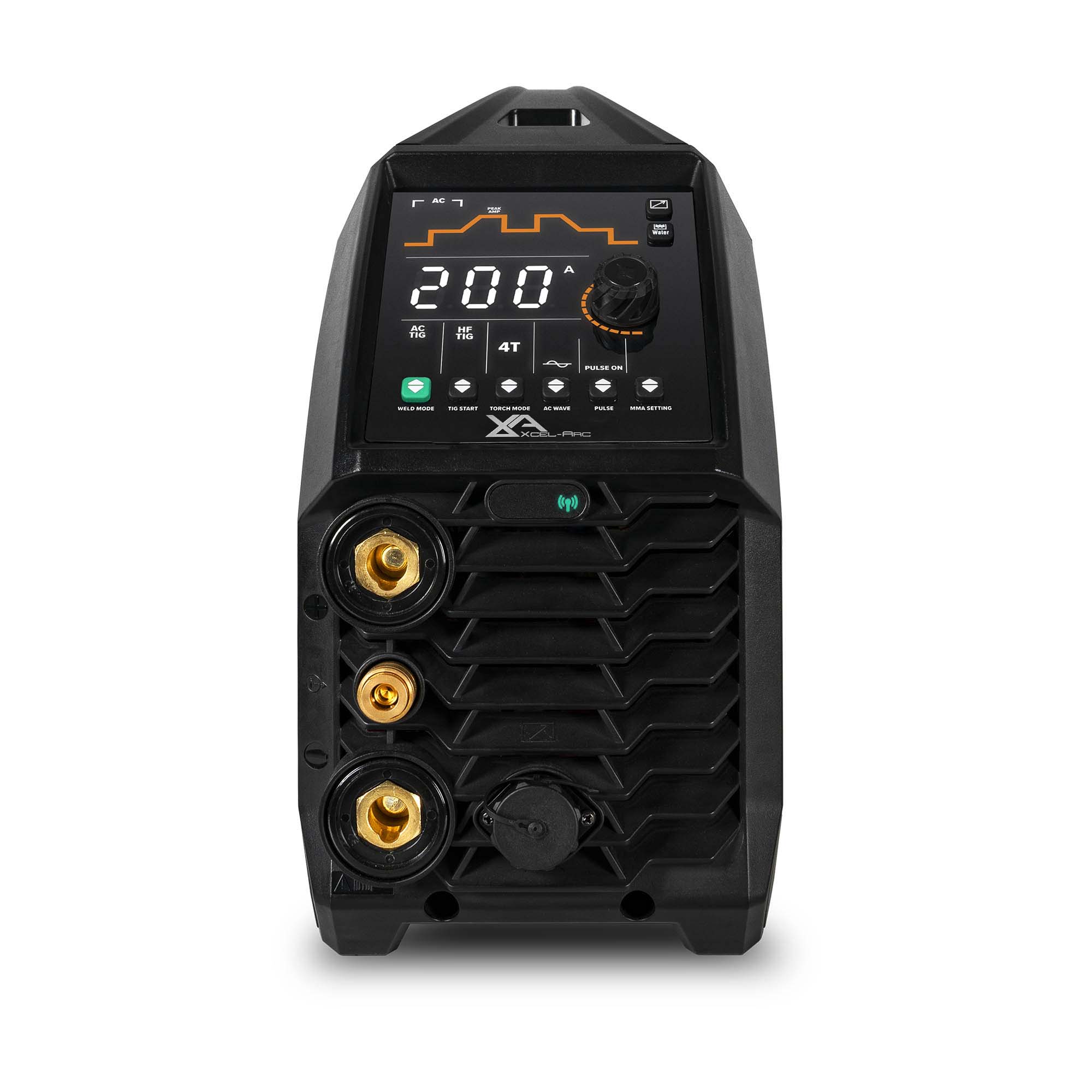

Xcel-Arc Razor Tig 200 ACDC PFC 10amp Plug Digital Compact Kit NEW MODEL

SKU: XA-RZTIG200ACDCPFC-K

Selling units:

kit

Pack:

1.00

Carton:

0.00

XA-RZTIG200ACDCPFC-K

Enquire Now

FREE SHIPPING

Favourite

Compare

NEW Model replaces XA-TIG200CRZACDCKIT

10amp Power Plug

Get incredible results from start to finish with this professional-grade TIG welder.

Effortlessly weld any metal with the high-frequency AC/DC TIG
The ultimate combination of AC and DC available with Mixed Arc settings
Switch your AC welds to suit your needs with the choice of three waveforms
A 5-year warranty to reflect our confidence in this machine

View Brands Products

More information

trigger

Product Tabs

Description

10 AMP PLUG

CONNECT TO A 10 AMP OUTLET.

AC/DC HIGH FREQUENCY TIG

PERFECT FOR ALUMINIUM.

PULSE FUNCTION

MINIMISE DISTORTION ON THE WELDED MATERIAL.

FOOT CONTROL READY

EXTRA VERSATILITY AND CONVENIENCE.

SPECIFICATIONS

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

9.5

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

PROTECTION CLASS

IP23S

INSULATION CLASS

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

TIG: Aluminium, Magnesium, Zinc Alloys, Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron

WARRANTY (Years)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

20% @ 200A, 60% @ 115A, 100% @ 90A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-160A

STICK DUTY CYCLE @ 40°C

15% @ 160A, 60% @ 80A, 100% @ 62A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

SIZE & WEIGHT

DIMENSIONS (mm)

500×170×340mm

WEIGHT (kg)

11.7kg

MACHINE FEATURES

VRD

Yes

FOOT CONTROL CONNECTION

YES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

Technical

XA-RZTIG200ACDCPFC-Info-Sheet.pdf

XA-RZTIG200ACDCPFC-Manual-Aug-2023_E.pdf

Package Contents

RAZORWELD™ 200 DC PFC TIG Welder, 26FX Flexi Tig Torch x 8m, 4m Twist Lock Electrode Holder, 4m 300 Amp Earth Clamp & Lead, Argon Regulator, Operating Manual
