Xcel-Arc Razor Tig 220 DCHF PFC Kit 10amp Plug NEW MODEL

SKU: XA-RZTIG220PFC-K

$1,869.00incl GST

or 4 payments of $467.25

or 6 weekly payments of $311.50

or 4 fortnightly payments of $467.25

Selling units:

kit

Pack:

Carton:

In stock at Welding Technology Order before 1:00 pm and it ships today!

XA-RZTIG220PFC-K

FREE SHIPPING

Favourite

Compare

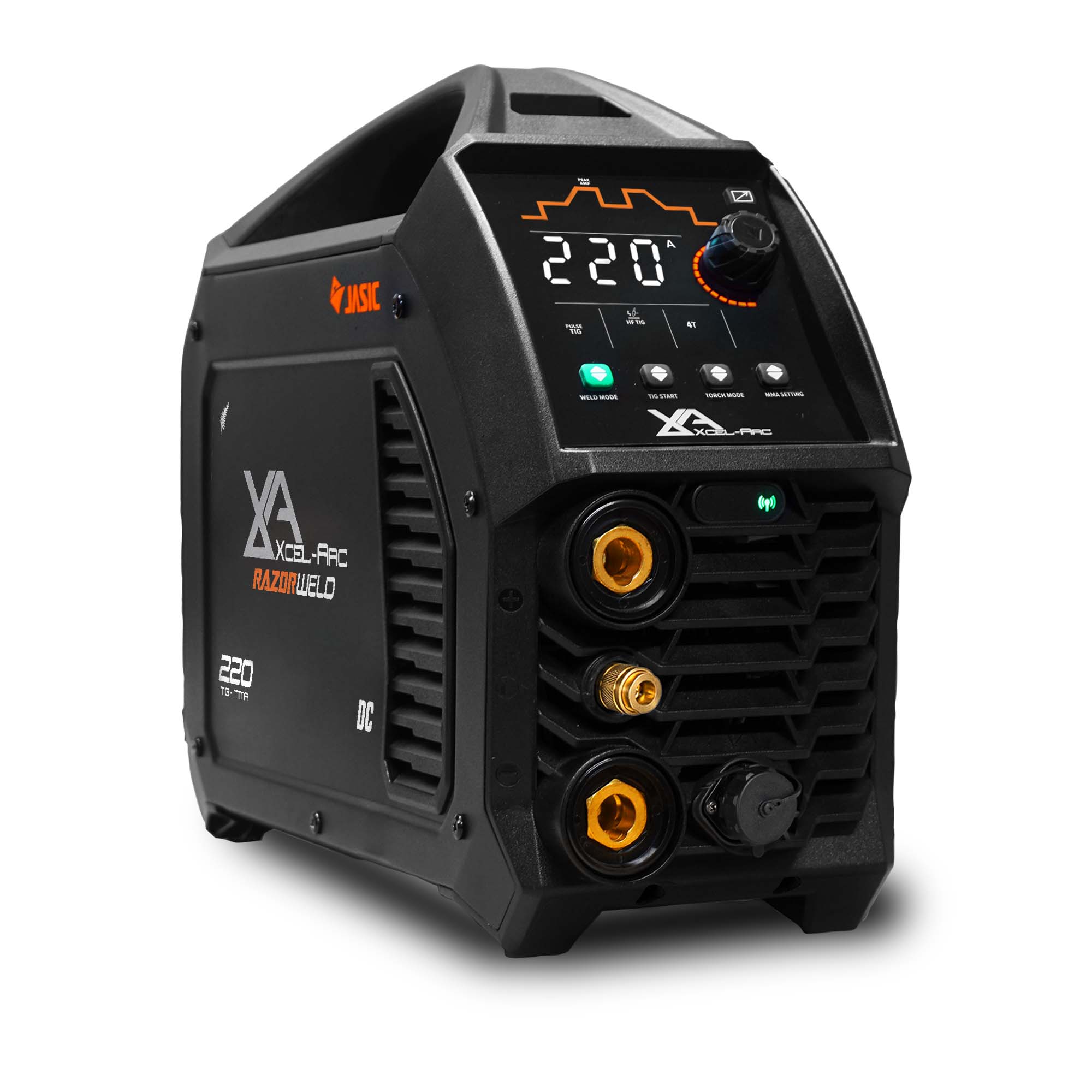

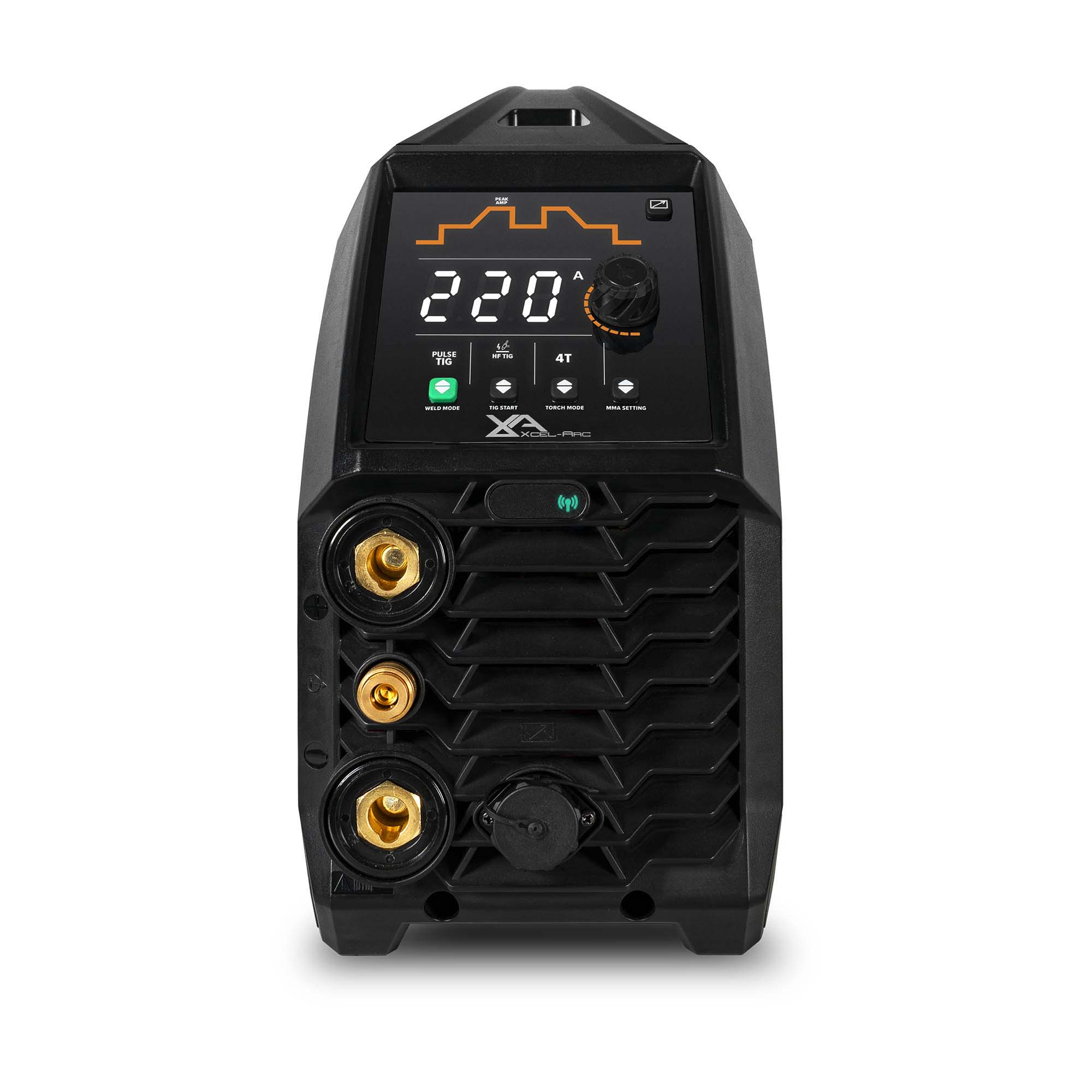

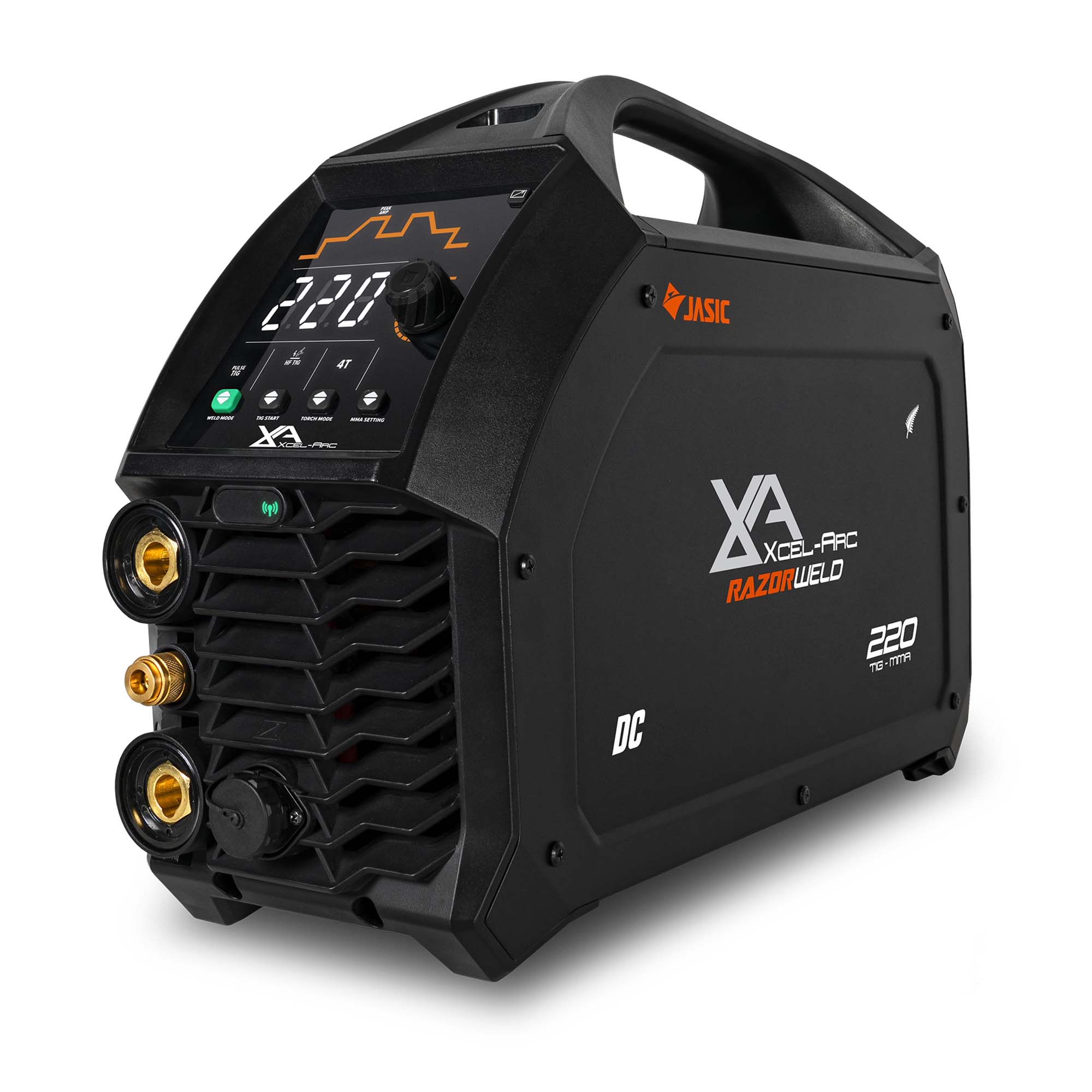

RAZORWELD™ 220 DC PFC TIG WELDER

This professional-grade DC TIG welder gives you incredible results from start to finish on every weld.

Get the full DC TIG welding cycling including all the pulse functions
With new PFC components, this machine can be run on a 10A plug
Connect a foot pedal to the machine for extra versatility and convenience
A 5-year warranty to reflect our confidence in this machine

View Brands Products

More information

trigger

Product Tabs

Description

10 AMP PLUG

CONNECT TO A 10 AMP OUTLET.

DC HIGH FREQUENCY TIG

FULL TIG WELD CYCLE CONTROL.

PULSE FUNCTION

MINIMISE DISTORTION ON THE WELDED MATERIAL.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
10 AMP
Ieff (A)
9.8
RATED OUTPUT
5-220A
NO LOAD VOLTAGE (V)
68
PROTECTION CLASS
IP23S
INSULATION CLASS
H
MINIMUM GENERATOR (kVA)
9.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium / MMA: Mild Steel, Stainless Steel, Cast Iron
WARRANTY (Years)
5
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC HF TIG / DC Pulse
TIG WELDING CURRENT RANGE
5-220A
TIG DUTY CYCLE @ 40°C
20% @ 220A, 60% @ 127A, 100% @ 98A
TIG WELDING THICKNESS RANGE
1-8mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-160A
STICK DUTY CYCLE @ 40°C
15% @ 160A, 60% @ 80A, 100% @ 62A
STICK ELECTRODE RANGE
2.5-4.0mm
STICK WELDING THICKNESS RANGE
2-10mm
SIZE & WEIGHT
DIMENSIONS (mm)
310×150×460
WEIGHT (kg)
8.9kg
MACHINE FEATURES
VRD
Yes
FOOT CONTROL CONNECTION
YES
THERMAL OVERLOAD PROTECTION
Over Temperature Warning

Technical

RAZOR-220-DC-info-sheet.pdf

XA-RZTIG220PFC-Manual-AUG23_E.pdf

Package Contents

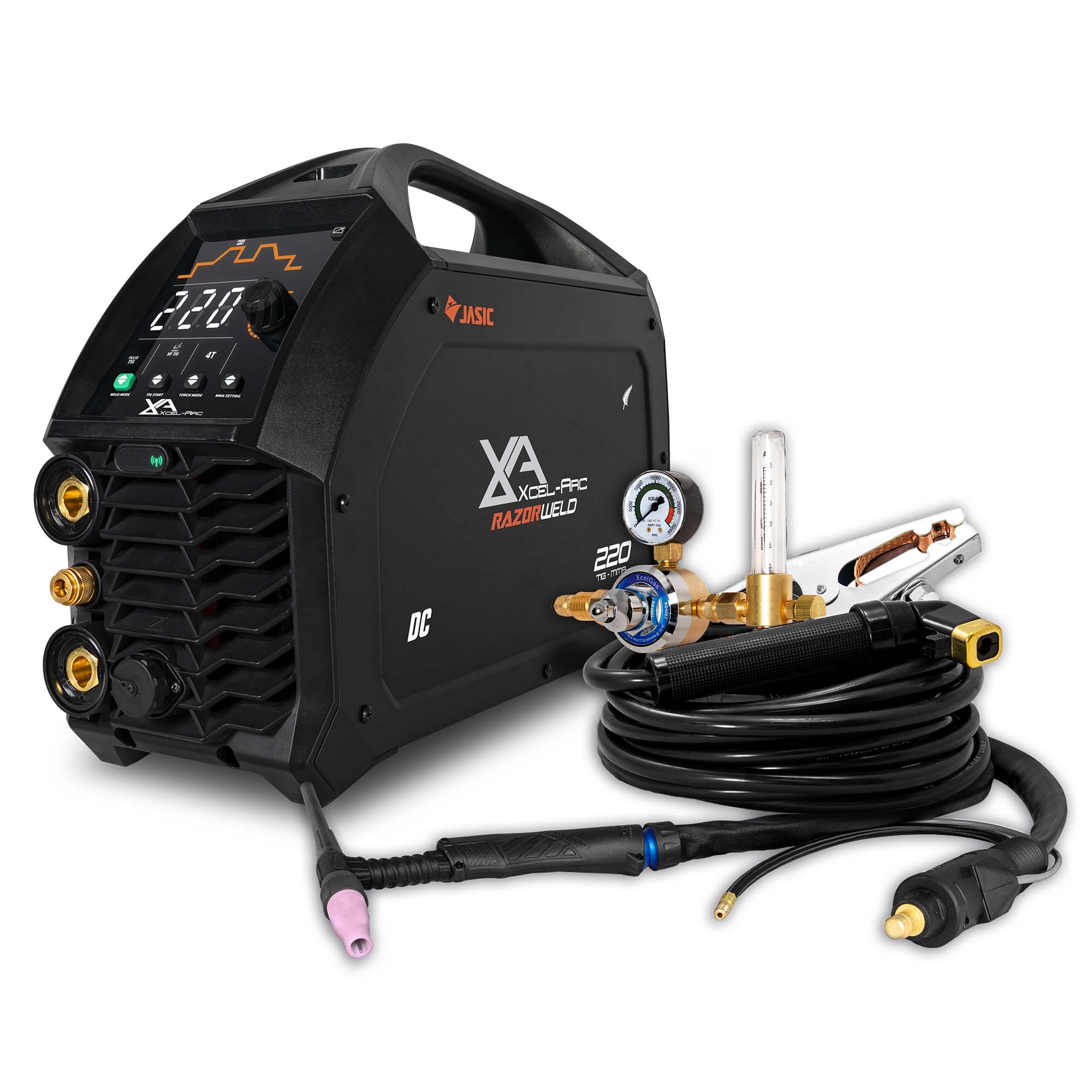

RAZORWELD™ 200 DC PFC TIG Welder, TIG Torch 17Fx Flexi 8m, 4m Twist Lock Electrode Holder, 4m 300 Amp Earth Clamp & Lead, Argon Regulator, Operating Manual
