Buy online Lincoln Engine Drive Vantage 400 PDL Stainless Steel

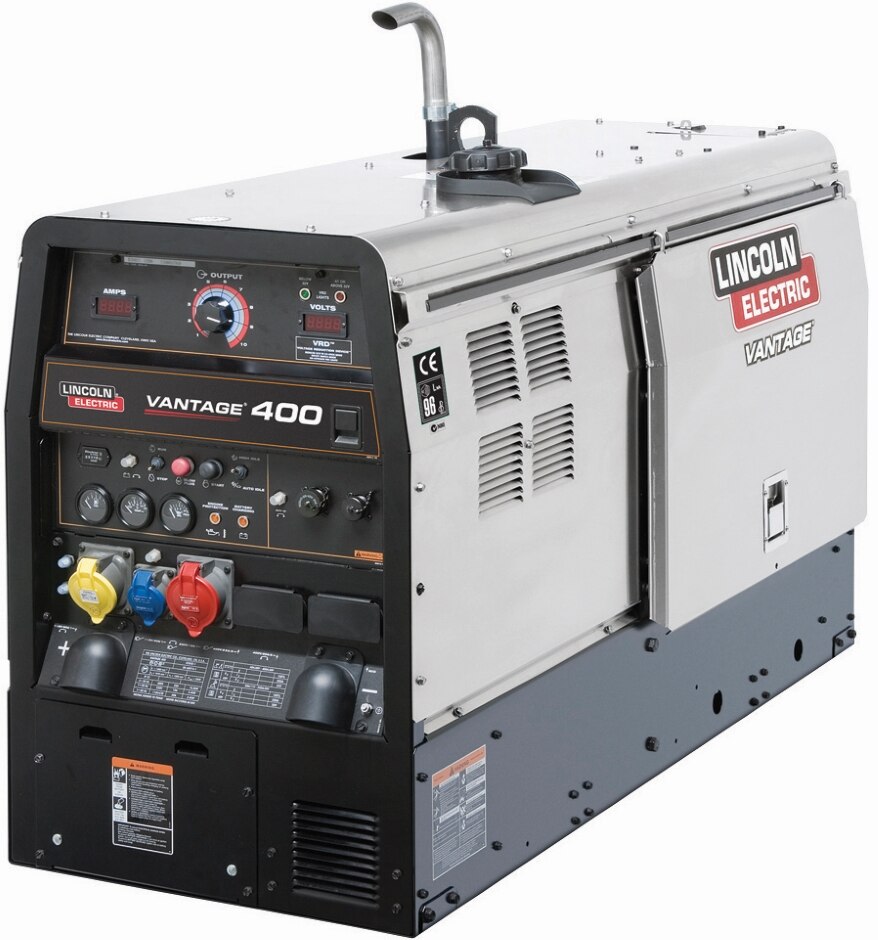

Lincoln Engine Drive Vantage 400 PDL Stainless Steel

SKU: K32038-1

Selling units:

bare

Pack:

Carton:

K32038-1

Enquire Now

Favourite

Compare

Features

Compact Case with Stainless Steel Enclosure
Multi-Process Welding, Separate Arc Gouge Mode
Plenty of AC Generator Power
Industrial Diesel Engine - 4 cylinder 1500 RPM Perkins®
Innovative Service Access

Processes: Stick, TIG, MIG, Flux-Cored, Gouging

Output

Input

View Brands Products

More information

trigger

Product Tabs

Description

RATED OUTPUT:

400A/30V/60%
350A/34V/100%

OUTPUT RANGE:

14-36V CV
20-250A DC TIG
30-400A DC
40-300A Pipe
90-400A Gouge

GENERATOR OUTPUT: 3-PH: 13.2 kW cont., 1-PH: 7.2 kW cont.

TYPE OF ENGINE: Perkins 404D-22 Diesel

HP AND SPEED: 28HP @ 1500 RPM

CYLINDERS: 4

DIMENSIONS: (H X W X D) 913 mm x 642 mm x 1524 mm

NOISE LEVEL

96 dB Sound Power (Lwa)

71 dBA Sound Level at 7m

Technical

Lincoln Vantage 400-Welding Technology.pdf

Lincoln Vantage® 400 Engine Driven Welder (Perkins®)-K32038-1-User Operating Manual.pdf
