Welding Goggles Auto Darkening Faceshield Kit Razor

Technical Data
Filter Dimensions 171.5 x 77.5mm
View Size 110 x 40mm
Arc Sensors 2
Classification 1/1/1/2
Light State Shade 3
Dark State Shades 5-9 / 9-13
UV/IR Protection DIN15
Time from Light to Dark 0.08ms
Time from Dark to Light 0.01-0.9s
Sensitivity Setting Adjustable ( External)
Delay Control Adjustable (External)
Power Supply Solar Cells & CR2450 Battery
Operating Temperature -10°C to 65°C
Storage Temperature -20°C to 85°C
Min TIG Amperage 5 Amps
Compliant Standards AS/NZS 1337.1:2010, AS/NZS 1338.1:2012

Overview
The new RazorShield from Xcel-Arc is an excellent low-profile solution for welding in confined spaces where access with traditional welding
helmets is limited. Ideal for all welding work from industrial to hobby applications, the RazorShield can also be worn in conjunction with a

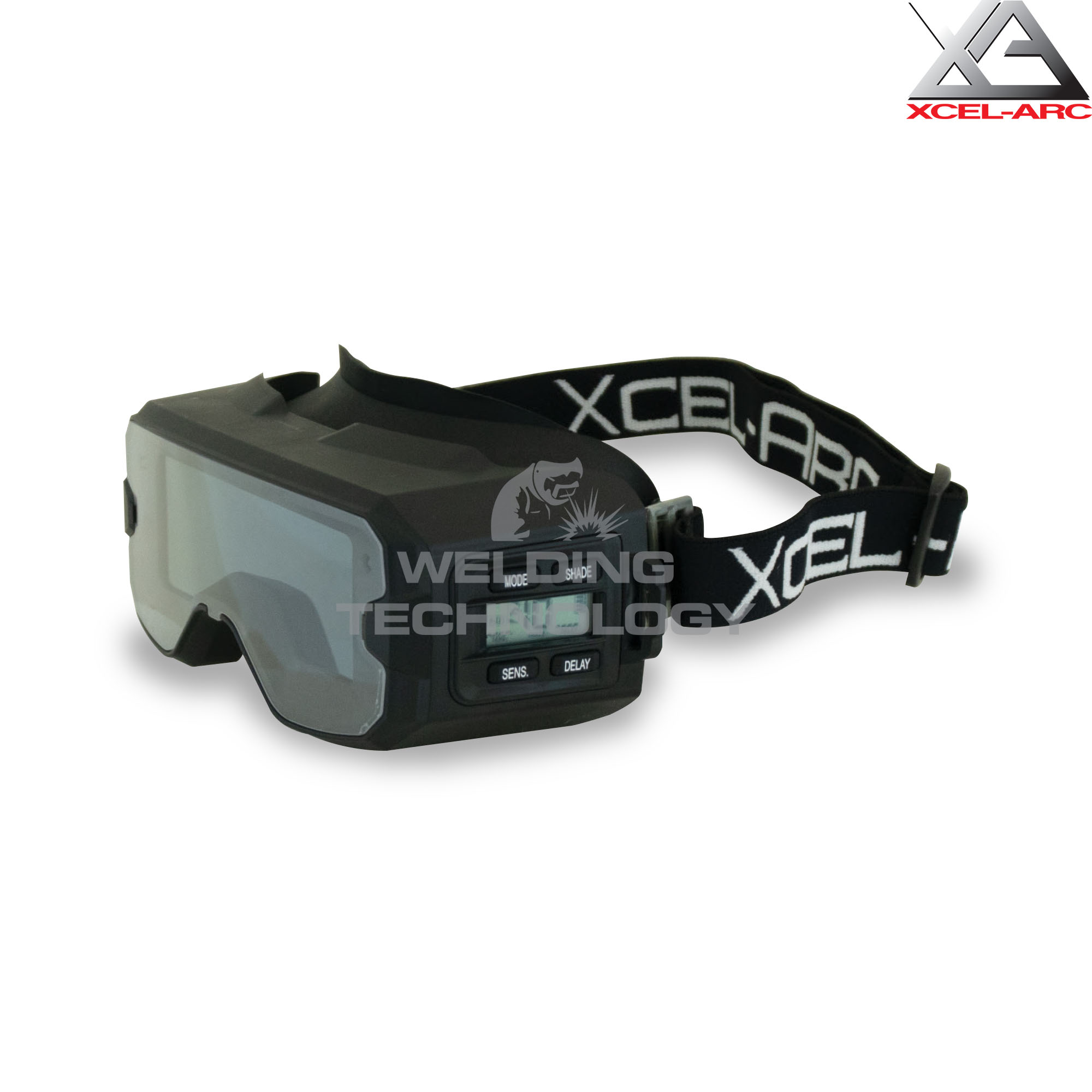

hard hat, making it ideal for construction and site welding work. The digitally controlled Auto-Darkening Goggles are easily detached from
the protective faceshield, allowing them to be used separately when required. Dual Arc Sensors, Shade and Sensitivity Controls and the
latest generation of True Colour™ technology combine to provide a clear, natural view of the work and your surroundings while the integral

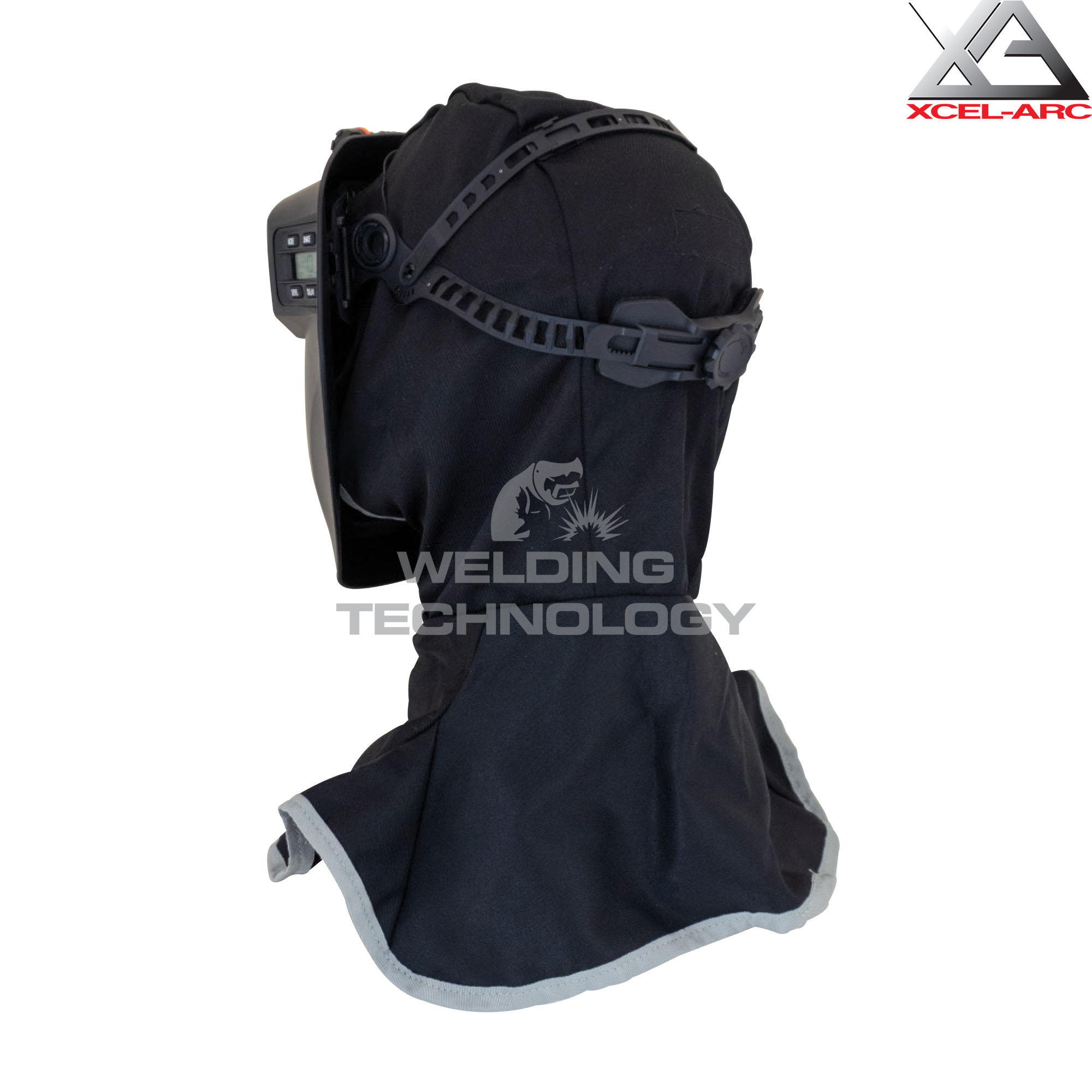

Grind Mode allows for seamless workflow in metal fabrication work. The protective faceshield and flame-retardant hood provide head
and neck coverage for both UV/IR rays and weld spatter while an integral LED Headlamp provides additional visibility in dark or confined
spaces. The narrow design of the RazorShield also allows the use of a low-profile half mask respirator such as the Elipse™ Respirator for
ultimate protection from welding hazards.
